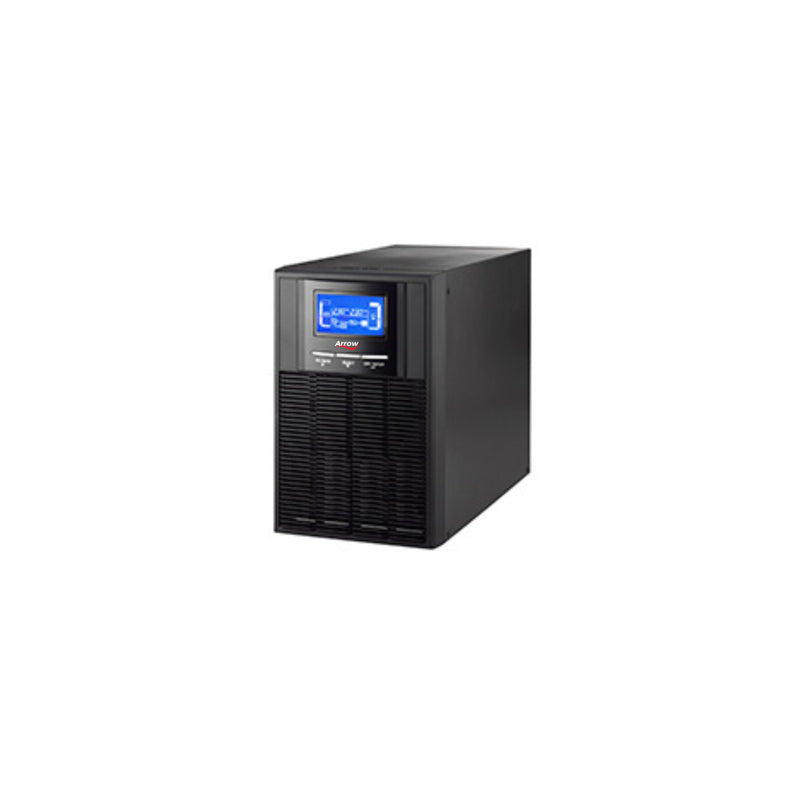

Online Built-in Battery UPS - 1 KVA 800 W 24 VDC

Online Built-in Battery UPS - 1 KVA 800 W 24 VDC

Model: OLBIB1V2B

₹15,200.00

₹30,786.00

50% OFF

Secure your product with up to 3 years of Extended Warranty. For assistance, call +91 99090 07070.

Quick Specifications

PF 0.8

Wattage 800 W

VDC 24 VDC

Battery Configuration 2X 7 AH BATT

Dimensions 282 x 145 x220

Weight 11 Kg.

Product Overview

The Arrow Powertech OLBIB1V2B Online Built-in Battery UPS is a compact yet powerful power backup solution designed for critical environments where uninterrupted performance is essential. With a capacity of 1 KVA and an output of 800 W, the OLBIB1V2B ensures clean, stable, and continuous power supply for sensitive equipment in banks, hospitals, clinics, surveillance systems, and SOHO applications.

Powered by advanced online double conversion technology, the OLBIB1V2B delivers pure sine wave output, completely isolating connected devices from power disturbances such as voltage fluctuations, spikes, surges, and frequency variations. This ensures maximum protection for critical systems like medical equipment, banking infrastructure, and security networks. Its instantaneous zero transfer time eliminates any delay during power interruptions, ensuring seamless operation without any downtime.

The Arrow Powertech OLBIB1V2B features a built-in battery system with dual 7Ah batteries operating on a 24V DC configuration, providing reliable backup during outages while maintaining a compact footprint. This integrated design reduces installation complexity and saves space, making it ideal for environments where efficiency and convenience are priorities.

Designed with durability and safety in mind, the OLBIB1V2B includes comprehensive protection features such as overload protection, short circuit protection, battery deep discharge protection, and surge protection. Its intelligent monitoring system ensures optimal performance and long battery life with minimal maintenance requirements.

Perfect for mission-critical applications, the Arrow Powertech OLBIB1V2B Online UPS delivers consistent power quality, enhanced device protection, and operational continuity. Whether used in healthcare facilities, financial institutions, or surveillance setups, it provides a dependable and efficient backup solution, ensuring peace of mind and uninterrupted productivity during power disruptions.

Technical Specifications

CAPACITY
Capacity	1000 VA / 800 W
Phase	Single-phase with ground
INPUT
Nominal Voltage	110/115/120/127 Vac · 208/220/230/240 Vac
Voltage Range	56~150 Vac (50% load) or 110~300 Vac; 85~140 Vac (full load low range)
Frequency Range	40~70 Hz
Power Factor	> 0.99 @ nominal voltage, 100% load
OUTPUT
Output Voltage	110/115/120/127 Vac · 208/220/230/240 Vac
Voltage Regulation	± 1%
Frequency (Sync.)	47~53 Hz · 57~63 Hz
Frequency (Batt.)	50 Hz ± 0.25 Hz · 60 Hz ± 0.3 Hz
Waveform	Pure Sine Wave
Crest Factor	3 : 1
THDv	≤ 3% (linear load) · ≤ 6% (non-linear load)
Transfer Time	Inverter → Bypass: 4 ms (typical)
EFFICIENCY
AC Mode	88%
Battery Mode	83%
BATTERY
Standard Model	12V / 9Ah × 2
Long-run Model	External batteries (2~3 pcs, depending on capacity)
Charging Current	1 A max.
Charging Voltage	27.4 Vdc ± 1% (standard) · 27.4~41.0 Vdc ± 1% (long-run)
Recharge Time	4 hours to recover 90% capacity
INDICATORS & ALARMS
Display	LCD — load level, battery level, AC mode, battery mode, bypass mode
Battery Mode Alarm	Beep every 4 seconds
Low Battery Alarm	Beep every second
Overload Alarm	Beep twice per second
Fault Alarm	Continuous beep
ENVIRONMENT
Operating Humidity	20~90% RH @ 40°C (non-condensing)
Noise Level at 1 m	< 50 dB
MANAGEMENT
Communication	Smart RS-232 / USB (Windows, Linux, macOS compatible)
Optional	SNMP card — power management via SNMP manager & web browser
OTHERS
Dimensions D×W×H (Std.)	282 × 145 × 220 mm
Dimensions D×W×H (Long-run)	282 × 145 × 220 mm
Net Weight (Std.)	8.8 kg
Net Weight (Long-run)	4.1 kg
