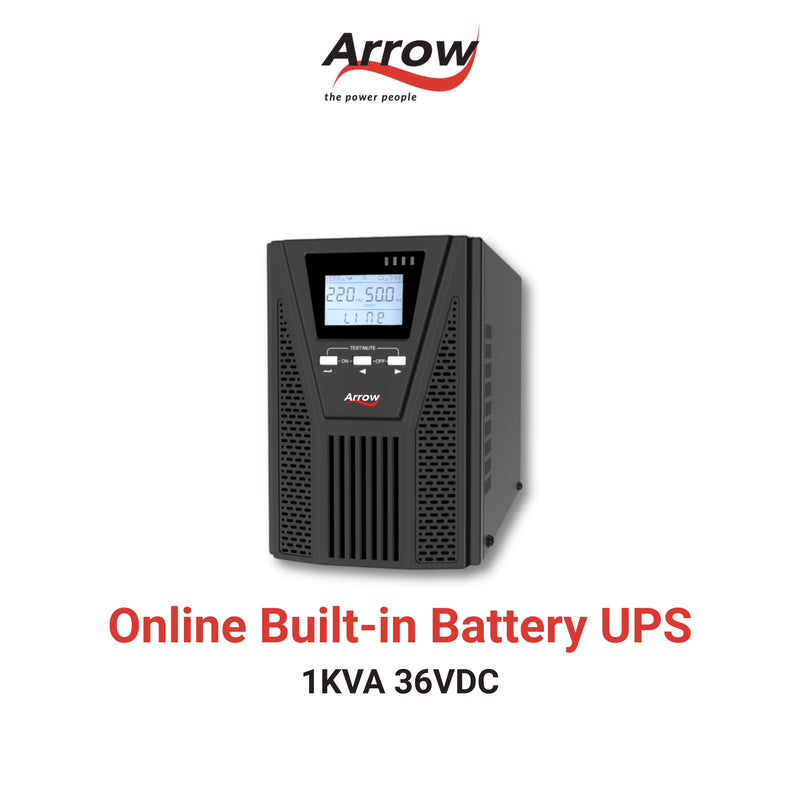

Online Built-in Battery UPS - 1 KVA 800 W 36 VDC

Online Built-in Battery UPS - 1 KVA 800 W 36 VDC

Model: OLBIB1K/E

₹15,300.00

₹35,424.00

56% OFF

Secure your product with up to 3 years of Extended Warranty. For assistance, call +91 99090 07070.

Quick Specifications

PF 0.8

Wattage 800 W

VDC 36 VDC

Battery Configuration 3X 7 AH BATT

Dimensions 144x271x216

Weight 13 Kg.

Product Overview

The Arrow Powertech OLBIB1K/E Online Built-in Battery UPS is a highly efficient and dependable power backup solution engineered for critical applications that demand continuous and clean power supply. With a capacity of 1 KVA and an output of 800 W, the OLBIB1K/E is ideally suited for banks, hospitals, clinics, surveillance systems, and small office or home office environments where reliability is non-negotiable.

Utilizing advanced online double conversion technology, the OLBIB1K/E delivers pure sine wave output, ensuring complete isolation from power disturbances such as voltage fluctuations, spikes, surges, and frequency inconsistencies. This guarantees superior protection for sensitive equipment, including medical devices, banking systems, and security infrastructure. With zero transfer time, the UPS ensures uninterrupted operation during power outages, eliminating any risk of downtime or data loss.

The Arrow Powertech OLBIB1K/E is equipped with an integrated battery system featuring three 7Ah batteries configured on a 36V DC platform. This enhanced battery setup provides improved backup duration and performance while maintaining a compact and space-efficient design. The built-in battery configuration simplifies installation and reduces the need for external battery management, making it a convenient and practical choice for professional environments.

Designed for long-term reliability, the OLBIB1K/E includes advanced safety features such as overload protection, short circuit protection, surge protection, and deep discharge protection. Its intelligent control system optimizes battery usage and ensures consistent performance with minimal maintenance.

Whether deployed in healthcare facilities, financial institutions, or surveillance setups, the Arrow Powertech OLBIB1K/E Online UPS delivers continuous power, enhanced equipment protection, and operational stability. It is a cost-effective and efficient solution for ensuring uninterrupted productivity and peace of mind in power-sensitive environments.

Key Features

High frequency on-line double conversion technology
DSP (Digital signal processing) control technology
Active power factor correction (APFC), input power factor up to 0.99
Output power factor 0.9/1.0
Wide input voltage range (110V ~ 300Vac) and frequency range (40 ~ 70Hz)
Auto sensing frequency
50 / 60Hz frequency conversion
Cold start
Rear ventilation design and variable speed fan
Effective software and hardware protection
Quick and stable charging, 90% capacity restored in 3h (standard model UPS)
Linear derating in low voltage input reducing battery discharging times
Settable delayed start when power is restored
Advanced battery management (ABM)
Multiple functions settable via LCD: output voltage, EOD, auto-start, bypass mode
Multi-platform communications: RS232 (standard), USB / RS485 / SNMP / dry

Download Brochure

Technical Specifications

CAPACITY
Capacity	1 kVA / 1 kW
INPUT
Rated Voltage	208 / 220 / 230 / 240 Vac
Voltage Range	110~176 Vac – linear derating 50–100% load; 176~280 Vac – no derating; 280~300 Vac – derating 50%
Frequency Range	50 / 60 Hz ± 5 Hz (auto-sensing)
Input Power Factor	≥ 0.95
Bypass Voltage Range	−40% ~ +20% (settable)
Rated Input Frequency	50 Hz / 60 Hz (auto-sense)
THDi	≤ 5%
OUTPUT
Voltage	208 / 220 / 230 / 240 Vac (settable via LCD)
Voltage Regulation	± 1%
Frequency	45~55 Hz or 55~65 Hz (synchronized); 50 / 60 Hz ± 0.1 Hz (battery mode)
Waveform	Sinusoidal
Output Power Factor	1
THDv	≤ 2% linear load · ≤ 5% non-linear load
Crest Factor	3 : 1
Overload	105–110%: 30 min · 110–130%: 10 min 130–150%: 30 s · >150%: 500 ms
BATTERIES
Battery Type	Sealed lead-acid, maintenance-free
DC Voltage	36V (S)
Inbuilt Battery	3 × 7 Ah
Charging Current (max.)	12 A (1~12 A settable)
Recharge Time	Standard model: 90% capacity in 3 hours · Long-time model: depends on battery capacity
SYSTEM CONTROL & COMMS
Efficiency – Mains	≥ 93.5%
Efficiency – Battery	≥ 90%
Efficiency – ECO	≥ 98.5%
Transfer Time	Mains → Battery: 0 ms · Inverter → Bypass: 4 ms (typical)
Protections	Short-circuit · Overload · Over-temperature · Battery discharge · Fan failure
Communication Port	RS232 (standard) · USB / RS485 / SNMP / Dry contacts (optional)
Display	LCD + LED
ENVIRONMENT
Operating Humidity	0~95% RH @ 0~40°C (non-condensing)
Storage Temperature	−25°C ~ 55°C (excluding batteries)
Operating Altitude	≤ 1000 m; derate 1% per additional 100 m
IP Rating	IP 20
Noise Level at 1 m	≤ 50 dB
OTHERS
Dimensions W×D×H	144 × 371 × 216 mm
Packaged W×D×H	230 × 460 × 315 mm
Net Weight	10.9 kg
Gross Weight	12.1 kg
