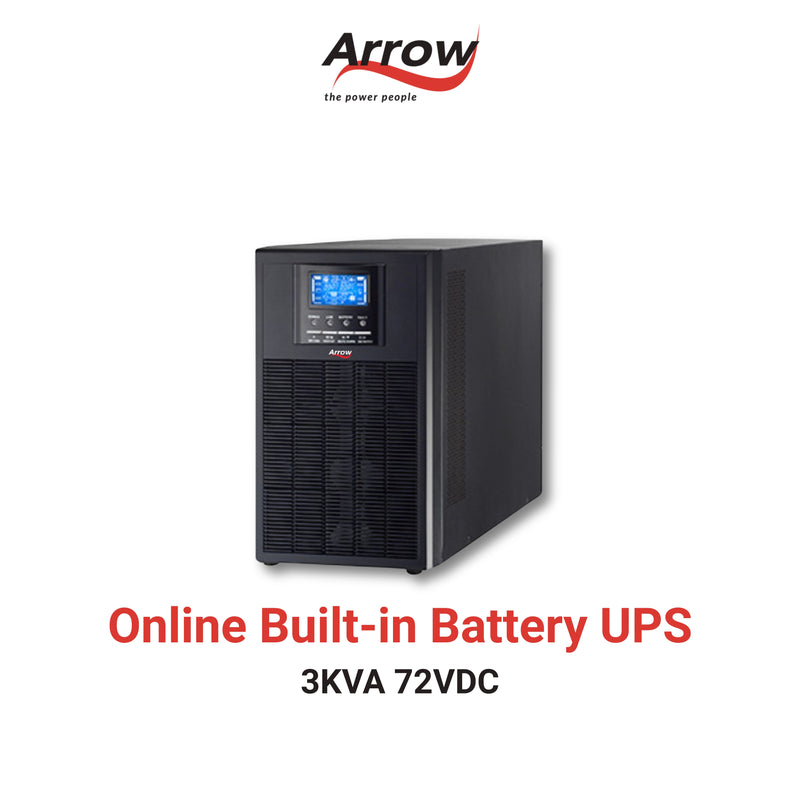

Online Built-in Battery UPS - 3 KVA 2400 W 72 VDC

Online Built-in Battery UPS - 3 KVA 2400 W 72 VDC

Model: OLBIB3V

₹32,400.00

₹62,328.00

48% OFF

Secure your product with up to 3 years of Extended Warranty. For assistance, call +91 99090 07070.

Quick Specifications

PF 0.8

Wattage 2400 W

VDC 72 VDC

Battery Configuration 6 X 7 AH BATT

Dimensions 421x190x318

Weight 25 Kg.

Product Overview

The Arrow Powertech OLBIB3V Online Built-in Battery UPS is a high-performance power backup solution designed to deliver reliable and uninterrupted power for critical applications. With a capacity of 3 KVA and an output of 2400 W, the OLBIB3V is ideal for demanding environments such as banks, hospitals, clinics, surveillance systems, and small office or home office setups where continuous operation is essential.

Built with advanced online double conversion technology, the OLBIB3V provides pure sine wave output, ensuring complete isolation from power disturbances such as voltage fluctuations, spikes, surges, and frequency variations. This guarantees superior protection for sensitive equipment including medical devices, financial systems, and security infrastructure. With zero transfer time, the UPS ensures seamless operation during power outages, eliminating downtime and safeguarding critical processes.

The Arrow Powertech OLBIB3V features a robust built-in battery system with six 7Ah batteries configured on a 72V DC platform. This powerful battery setup delivers reliable backup performance while maintaining a compact and integrated design that reduces installation complexity and saves valuable space. It is engineered to support extended runtime and consistent power delivery for essential operations.

Designed for durability and safety, the OLBIB3V includes comprehensive protection features such as overload protection, short circuit protection, surge protection, and deep discharge protection. Its intelligent monitoring and control system enhances battery life and ensures optimal performance with minimal maintenance.

Whether used in healthcare facilities, banking environments, or surveillance networks, the Arrow Powertech OLBIB3V Online UPS provides stable, clean power and dependable backup. It is an efficient and cost-effective solution for maintaining operational continuity, protecting valuable equipment, and ensuring peace of mind during unexpected power disruptions.

Technical Specifications

CAPACITY
Capacity	3000 VA / 2400 W
Phase	Single-phase with ground
INPUT
Nominal Voltage	110/115/120/127 Vac · 208/220/230/240 Vac
Voltage Range	56~150 Vac (50% load) or 110~300 Vac; 85~140 Vac (full load low range)
Frequency Range	40~70 Hz
Power Factor	> 0.99 @ nominal voltage, 100% load
OUTPUT
Output Voltage	110/115/120/127 Vac · 208/220/230/240 Vac
Voltage Regulation	± 1%
Frequency (Sync.)	47~53 Hz · 57~63 Hz
Frequency (Batt.)	50 Hz ± 0.25 Hz · 60 Hz ± 0.3 Hz
Waveform	Pure Sine Wave
Crest Factor	3 : 1
THDv	≤ 3% (linear load) · ≤ 6% (non-linear load)
Transfer Time	Inverter → Bypass: 4 ms (typical)
EFFICIENCY
AC Mode	90%
Battery Mode	88%
BATTERY
Standard Model	12V / 9Ah × 6
Long-run Model	External batteries (6~8 pcs, depending on capacity)
Charging Current	1 A max.
Charging Voltage	82.1 Vdc ± 1% (standard) · 82.1~109.4 Vdc ± 1% (long-run)
Recharge Time	4 hours to recover 90% capacity
INDICATORS & ALARMS
Display	LCD — load level, battery level, AC mode, battery mode, bypass mode
Battery Mode Alarm	Beep every 4 seconds
Low Battery Alarm	Beep every second
Overload Alarm	Beep twice per second
Fault Alarm	Continuous beep
ENVIRONMENT
Operating Humidity	20~90% RH @ 40°C (non-condensing)
Noise Level at 1 m	< 50 dB
MANAGEMENT
Communication	Smart RS-232 / USB (Windows, Linux, macOS compatible)
Optional	SNMP card — power management via SNMP manager & web browser
OTHERS
Dimensions D×W×H (Std.)	421 × 100 × 318 mm
Dimensions D×W×H (Long-run)	369 × 190 × 318 mm
Net Weight (Std.)	27.6 kg
Net Weight (Long-run)	7.4 kg
