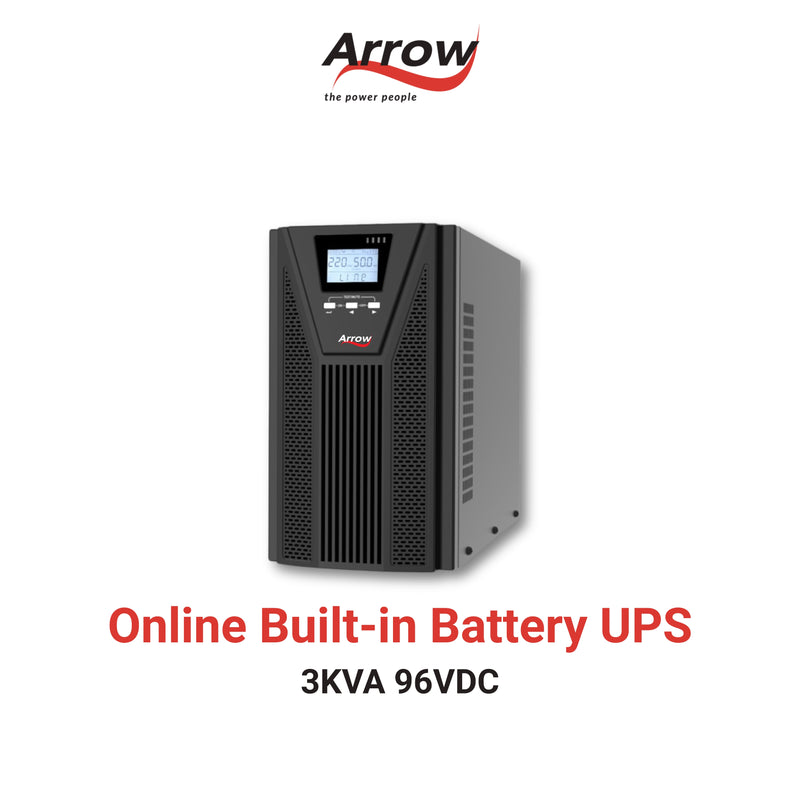

Online Built-in Battery UPS - - 3 KVA 2400 W 96 VDC

Online Built-in Battery UPS - - 3 KVA 2400 W 96 VDC

Model: OLBIB3K/E

₹34,800.00

₹66,894.00

47% OFF

Secure your product with up to 3 years of Extended Warranty. For assistance, call +91 99090 07070.

Quick Specifications

PF 0.8

Wattage 2400 W

VDC 96 VDC

Battery Configuration 8 X 7 AH BATT

Dimensions 191x419x335

Weight 30 Kg.

Product Overview

The Arrow Powertech OLBIB3K/E Online Built-in Battery UPS is a reliable and high-capacity power backup solution designed for critical environments that demand uninterrupted and stable power supply. With a capacity of 3 KVA and an output of 2400 W, the OLBIB3K/E is perfectly suited for applications in banks, hospitals, clinics, surveillance systems, and SOHO setups where continuous operation is essential.

Powered by advanced online double conversion technology, the OLBIB3K/E delivers pure sine wave output, ensuring complete isolation from power disturbances such as voltage fluctuations, surges, spikes, and frequency inconsistencies. This makes it ideal for protecting sensitive equipment like medical devices, financial systems, and security infrastructure. Its zero transfer time guarantees seamless power transition during outages, eliminating any downtime and ensuring uninterrupted performance.

The Arrow Powertech OLBIB3K/E features a powerful built-in battery system consisting of eight 7Ah batteries configured on a 96V DC platform. This enhanced battery setup provides longer backup duration and consistent power delivery while maintaining a compact and integrated design. The built-in configuration reduces installation complexity and saves space, making it highly practical for professional environments.

Engineered for durability and safety, the OLBIB3K/E includes advanced protection features such as overload protection, short circuit protection, surge protection, and deep discharge protection. Its intelligent control and monitoring system ensures efficient battery management, extended battery life, and minimal maintenance requirements.

Ideal for mission-critical operations, the Arrow Powertech OLBIB3K/E Online UPS delivers clean, stable, and continuous power to safeguard essential systems. Whether deployed in healthcare facilities, financial institutions, or surveillance networks, it provides a cost-effective and dependable solution for maintaining productivity, protecting valuable equipment, and ensuring peace of mind during unexpected power interruptions.

Key Features

High frequency on-line double conversion technology
DSP (Digital signal processing) control technology
Active power factor correction (APFC), input power factor up to 0.99
Output power factor 0.9/1.0
Wide input voltage range (110V ~ 300Vac) and frequency range (40 ~ 70Hz)
Auto sensing frequency
50 / 60Hz frequency conversion
Cold start
Rear ventilation design and variable speed fan
Effective software and hardware protection
Quick and stable charging, 90% capacity restored in 3h (standard model UPS)
Linear derating in low voltage input reducing battery discharging times
Settable delayed start when power is restored
Advanced battery management (ABM)
Multiple functions settable via LCD: output voltage, EOD, auto-start, bypass mode
Multi-platform communications: RS232 (standard), USB / RS485 / SNMP / dry contacts (optional)

Download Brochure

Technical Specifications

CAPACITY
Capacity	3 kVA / 3 kW
INPUT
Rated Voltage	208 / 220 / 230 / 240 Vac
Voltage Range	110~176 Vac – linear derating 50–100% load; 176~280 Vac – no derating; 280~300 Vac – derating 50%
Frequency Range	50 / 60 Hz ± 5 Hz (auto-sensing)
Input Power Factor	≥ 0.99
Bypass Voltage Range	−40% ~ +20% (settable)
Rated Input Frequency	50 Hz / 60 Hz (auto-sense)
THDi	≤ 5%
OUTPUT
Voltage	208 / 220 / 230 / 240 Vac (settable via LCD)
Voltage Regulation	± 1%
Frequency	45~55 Hz or 55~65 Hz (synchronized); 50 / 60 Hz ± 0.1 Hz (battery mode)
Waveform	Sinusoidal
Output Power Factor	1
THDv	≤ 2% linear load · ≤ 5% non-linear load
Crest Factor	3 : 1
Overload	105–110%: 30 min · 110–130%: 10 min 130–150%: 30 s · >150%: 500 ms
BATTERIES
Battery Type	Sealed lead-acid, maintenance-free
DC Voltage	96V (S)
Inbuilt Battery	8 × 7 Ah
Charging Current (max.)	12 A (1~12 A settable)
Recharge Time	Standard model: 90% capacity in 3 hours · Long-time model: depends on battery capacity
SYSTEM CONTROL & COMMS
Efficiency – Mains	≥ 95.5%
Efficiency – Battery	≥ 93%
Efficiency – ECO	≥ 99%
Transfer Time	Mains → Battery: 0 ms · Inverter → Bypass: 4 ms (typical)
Protections	Short-circuit · Overload · Over-temperature · Battery discharge · Fan failure
Communication Port	RS232 (standard) · USB / RS485 / SNMP / Dry contacts (optional)
Display	LCD + LED
ENVIRONMENT
Operating Humidity	0~95% RH @ 0~40°C (non-condensing)
Storage Temperature	−25°C ~ 55°C (excluding batteries)
Operating Altitude	≤ 1000 m; derate 1% per additional 100 m
IP Rating	IP 20
Noise Level at 1 m	≤ 50 dB
OTHERS
Dimensions W×D×H	191 × 419 × 335 mm
Packaged W×D×H	277 × 500 × 435 mm
Net Weight	25.6 kg
Gross Weight	27.3 kg
