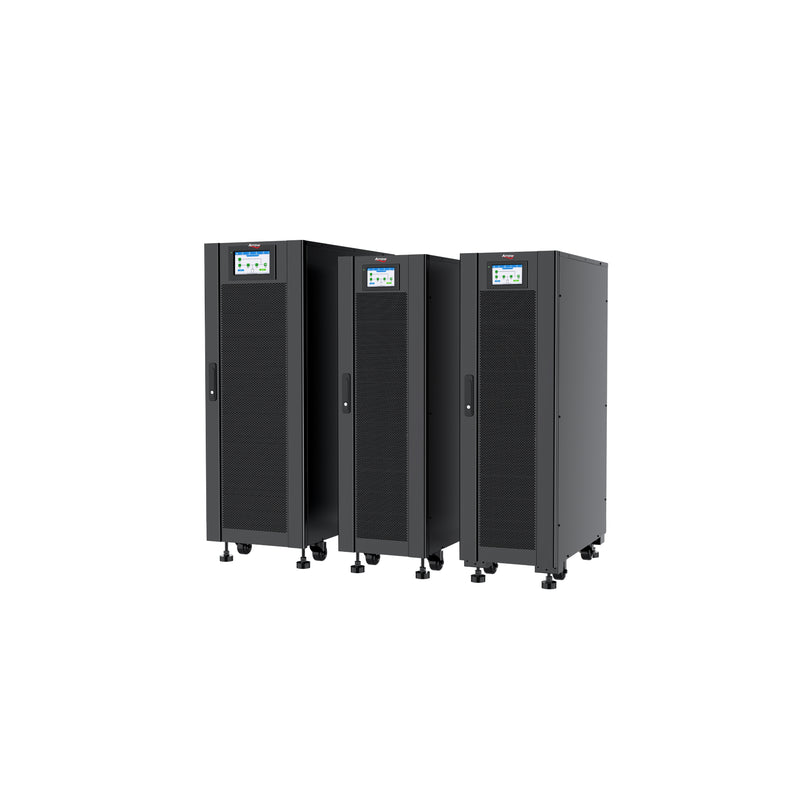

Online HF UPS - 3 Phase 100 KVA 90KW 360/384 VDC

Model: OL100E 33

₹933,780.00

₹1,634,123.00

42% OFF

Secure your product with up to 3 years of Extended Warranty. For assistance, call +91 99090 07070.

Quick Specifications

PF 0.9

Wattage 90KW

VDC 360/384 VDC

Battery Configuration Long Back Up UPS

Dimensions 360x850x1200

Weight 180 Kg.

Product Overview

The Arrow Powertech OL100E 33 Online Long Backup UPS is a high-capacity and mission-critical power solution designed to deliver reliable and uninterrupted performance for large-scale applications. With a capacity of 100 KVA and an output of 90 KW, the OL100E 33 is ideally suited for data centres, healthcare facilities, industrial equipment, and pharmaceutical environments where continuous and stable power is essential.

Powered by advanced online high-frequency double conversion technology, the OL100E 33 ensures pure sine wave output, providing complete isolation from power disturbances such as voltage fluctuations, surges, spikes, and frequency inconsistencies. This makes it highly effective in protecting sensitive and high-value equipment such as servers, medical devices, and industrial machinery. With zero transfer time, the UPS guarantees seamless power delivery during outages, eliminating downtime and ensuring uninterrupted operations in mission-critical environments.

The Arrow Powertech OL100E 33 operates on a robust high-voltage DC system ranging from 360V to 384V, designed to support extended external battery configurations for long backup requirements. As a three-phase UPS, it ensures balanced load distribution, improved efficiency, and reliable performance under heavy load conditions, making it an ideal choice for large-scale infrastructure and data centre applications.

Engineered for durability and long-term reliability, the OL100E 33 includes advanced protection features such as overload protection, short circuit protection, surge protection, and deep discharge protection. Its intelligent monitoring and battery management system optimizes battery efficiency, extends battery life, and minimizes maintenance requirements.

Whether deployed in data centres, healthcare institutions, or industrial setups, the Arrow Powertech OL100E 33 Online UPS delivers clean, stable, and continuous power. It is a cost-effective and dependable solution for maintaining uptime, safeguarding critical systems, and ensuring uninterrupted productivity during extended power disruptions.

Key Features

High frequency on-line double conversion technology
Advanced dual-core DSP control technology and 3-level technology
Active Power Factor Correction Technology, input power factor up to 0.99
System efficiency improved to 96%, energy saving rate is doubled
Output power factor 1.0
Dual input design, supporting independent bypass
Advanced digital and parallel technology, providing higher reliability than single system
Wide input voltage range
50Hz/60Hz auto-sensing frequency
50Hz/60Hz frequency conversion mode
Working efficiency up to 98.5% in ECO mode
Fan speed varies intelligently with load, reducing noise and extending its service life
Conformal coating technology to make UPS operate in harsh environment for a long time
Flexible battery configuration setting, selectable battery number: 32~40 pcs
Digitally controlled charger (Max.60 A)
Ability to switch on the UPS by battery in the absence of mains power (Cold start)
Zero switching time for power supply mode when mains power is unstable, ensuring output is uninterrupted
Selectable size LCD colorful touch screen (5 inches and 7 inches), friendly human & machine interface
Powerful background software for parameters configuration and online upgrade
Advanced multi-platform communication for UPS monitoring: RS232, USB, RS485, dry contacts, SNMP card, Wi-Fi card and GPRS card
Linear derating in low voltage input, reducing battery discharging times, extending service life of battery.
Intelligent battery management, automatic equalized and float charging control, charger dormancy control, improving the reliability of charger and extending the battery life
Effective hardware & software protection, robust self-diagnosis function, abundant event log for future check
Standard RS232, USB, RS485, EPO, dry contacts, parallel port
Optional SNMP card, Wi-Fi card, GPRS card and SMS alarms
Automatic dust removal function, reduce the risk of PCB corrosion

Download Brochure

Technical Specifications

CAPACITY
Power Rating	100 kVA / 100 kW
INPUT
Rated Voltage	380/400/415 Vac (3Φ + N + PE)
Input Voltage Range	304~478 Vac (full load); 228~304 Vac (linear derating per min. phase voltage)
Rated Frequency	50 / 60 Hz
Frequency Range	40~70 Hz
Input Power Factor	> 0.99
Bypass Voltage Range	Selectable, default −20% ~ +15%
Bypass Frequency Range	Selectable: ±1 Hz, ±3 Hz, ±5 Hz
Input Current THDi	< 3% (linear load)
Bypass Overload	≤125%: long-term · 125–130%: 10 min 130–150%: 1 min · 150–400%: 1 s · >400%: < 200 ms
OUTPUT
Rated Inverter Voltage	380/400/415 Vac (3Φ + N + PE)
Voltage Precision	± 1% (linear load)
Frequency	Synchronized (mains mode); 50 / 60 Hz ± 0.1 Hz (battery mode)
Waveform	Sinusoidal
Output Power Factor	1
THDv	< 1% (full linear load); < 3% (full non-linear, IEC/EN62040-3)
Crest Factor	3 : 1
Inverter Overload	<110%: 60 min · 110–125%: 10 min 125–150%: 1 min · >150%: 200 ms
BATTERY
Battery Voltage (Long-run)	±240 Vdc (32~40 pcs selectable)
Charger Current	40 A
Charger Voltage Precision	< 1%
SYSTEM
Display	5-inch touch screen
Efficiency	96%
Transfer Time	0 ms
Interface	Standard: RS232, RS485, USB, Battery cold start; Optional: Dry contact, SNMP, Parallel kit
ENVIRONMENT
Operating Temperature	0°C ~ 40°C
Storage Temperature	−40°C ~ 70°C
Relative Humidity	0~95% (non-condensing)
Noise at 1 m	< 70 dB
Altitude	< 1000 m; derate 1% per 100 m (1000–2000 m)
OTHERS
Dimensions W×D×H	360 × 850 × 1200 mm
Packaged W×D×H	450 × 940 × 1350 mm
Net Weight	156 kg
Gross Weight	180 kg
