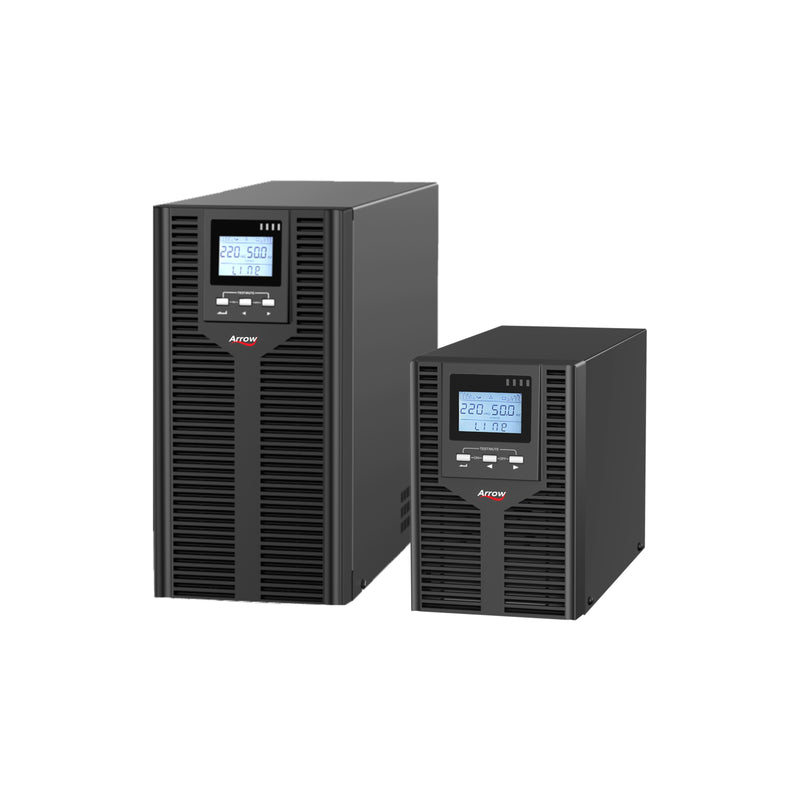

Online HF UPS - with Isolation Transformer 3000 VA 2700 W 96 VDC

Model: OLIT E3000

₹43,750.00

₹76,570.00

42% OFF

Secure your product with up to 3 years of Extended Warranty. For assistance, call +91 99090 07070.

Quick Specifications

PF 0.9

Wattage 2700 W

VDC 96 VDC

Battery Configuration Long Back Up UPS

Weight 32 Kg.

Product Overview

The Arrow Powertech OLIT E3000 Online UPS with Isolation Transformer is an efficient and high-capacity power backup solution designed to provide clean, stable, and secure power for critical applications. With a capacity of 3000 VA and an output of 2700 W, the OLIT E3000 is ideally suited for demanding environments such as data centers, healthcare facilities, industrial equipment, pharmaceutical operations, and critical manufacturing systems where uninterrupted power is essential.

Built with advanced online high-frequency double conversion technology, the OLIT E3000 delivers pure sine wave output, ensuring complete isolation from power disturbances such as voltage fluctuations, spikes, surges, and electrical noise. The integrated isolation transformer enhances protection by eliminating electrical interference and ensuring safe operation for sensitive equipment like medical devices, laboratory instruments, and precision industrial machinery. With zero transfer time, the UPS guarantees seamless power delivery during outages, preventing downtime and maintaining operational continuity.

The Arrow Powertech OLIT E3000 operates on a robust 96V DC system, specifically designed to support long backup configurations for extended runtime during prolonged power interruptions. This makes it an ideal solution for applications that require consistent and reliable power over extended periods.

Engineered for durability and performance, the OLIT E3000 includes comprehensive safety features such as overload protection, short circuit protection, surge protection, and deep discharge protection. Its intelligent battery management system optimizes battery efficiency, extends battery life, and minimizes maintenance requirements.

Whether deployed in critical manufacturing, healthcare institutions, or industrial environments, the Arrow Powertech OLIT E3000 Online UPS delivers reliable, clean, and continuous power. It is a cost-effective and dependable solution for protecting sensitive equipment, ensuring uninterrupted operations, and maintaining productivity in power-sensitive applications.

Key Features

High frequency on-line double conversion technology
DSP (Digital signal processing) control technology
Active power factor correction (APFC), input power factor up to 0.99
Output power factor 0.9/1.0
Wide input voltage range (110V ~ 300Vac) and frequency range (40 ~ 70Hz)
Auto sensing frequency
50 / 60Hz frequency conversion
Cold start
Rear ventilation design and variable speed fan
Effective software and hardware protection
Quick and stable charging, 90% capacity restored in 3h (standard model UPS)
Linear derating in low voltage input reducing battery discharging times
Settable delayed start when power is restored
Advanced battery management (ABM)
Multiple functions settable via LCD: output voltage, EOD, auto-start, bypass mode
Multi-platform communications: RS232 (standard), USB / RS485 / SNMP / dry

Download Brochure

Technical Specifications

CAPACITY
Capacity	3 kVA / 3 kW
INPUT
Rated Voltage	208 / 220 / 230 / 240 Vac
Voltage Range	110~176 Vac – linear derating 50–100% load; 176~280 Vac – no derating; 280~300 Vac – derating 50%
Frequency Range	50 / 60 Hz ± 5 Hz (auto-sensing)
Input Power Factor	≥ 0.99
Bypass Voltage Range	−40% ~ +20% (settable)
Rated Input Frequency	50 Hz / 60 Hz (auto-sense)
THDi	≤ 5%
OUTPUT
Voltage	208 / 220 / 230 / 240 Vac (settable via LCD)
Voltage Regulation	± 1%
Frequency	45~55 Hz or 55~65 Hz (synchronized); 50 / 60 Hz ± 0.1 Hz (battery mode)
Waveform	Sinusoidal
Output Power Factor	1
THDv	≤ 2% linear load · ≤ 5% non-linear load
Crest Factor	3 : 1
Overload	105–110%: 30 min · 110–130%: 10 min 130–150%: 30 s · >150%: 500 ms
BATTERIES
Battery Type	Sealed lead-acid, maintenance-free
DC Voltage	96V (H)
Inbuilt Battery	Long-time model (external batteries)
Charging Current (max.)	12 A (1~12 A settable)
Recharge Time	Long-time model: depends on external battery capacity
SYSTEM CONTROL & COMMS
Efficiency – Mains	≥ 95.5%
Efficiency – Battery	≥ 93%
Efficiency – ECO	≥ 99%
Transfer Time	Mains → Battery: 0 ms · Inverter → Bypass: 4 ms (typical)
Protections	Short-circuit · Overload · Over-temperature · Battery discharge · Fan failure
Communication Port	RS232 (standard) · USB / RS485 / SNMP / Dry contacts (optional)
Display	LCD + LED
ENVIRONMENT
Operating Humidity	0~95% RH @ 0~40°C (non-condensing)
Storage Temperature	−25°C ~ 55°C (excluding batteries)
Operating Altitude	≤ 1000 m; derate 1% per additional 100 m
IP Rating	IP 20
Noise Level at 1 m	≤ 50 dB
OTHERS
Dimensions W×D×H	144 × 417 × 216 mm
Packaged W×D×H	230 × 506 × 315 mm
Net Weight	6.5 kg
Gross Weight	8.0 kg
