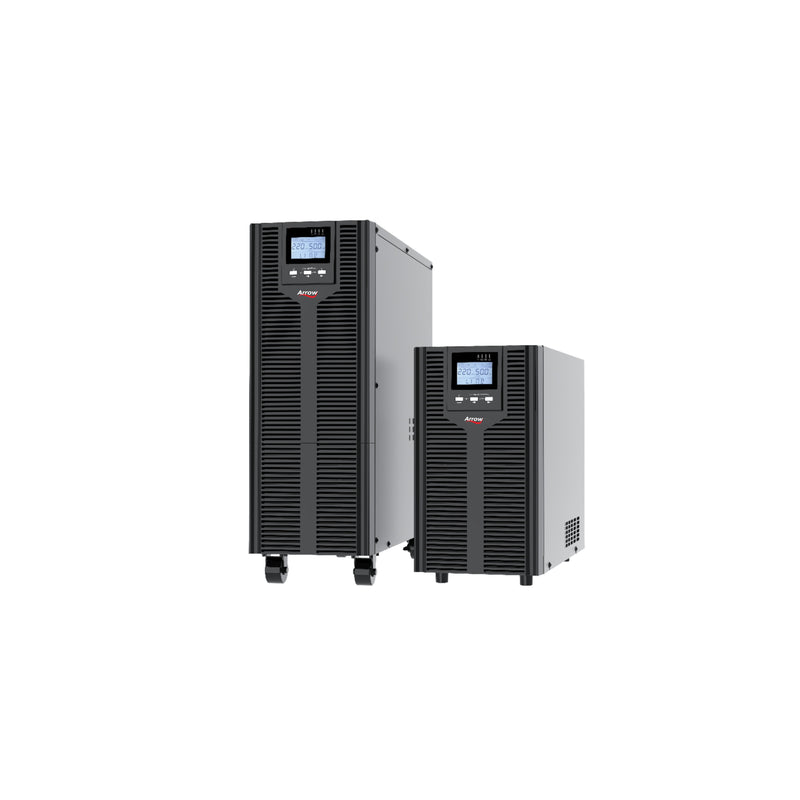

Online Long Battery UPS - 10 KVA 9000 W 192/240 VDC

Model: OL10ELB

₹92,040.00

₹161,070.00

42% OFF

Secure your product with up to 3 years of Extended Warranty. For assistance, call +91 99090 07070.

Quick Specifications

PF 0.9

Wattage 9000 W

VDC 192/240 VDC

Battery Configuration Long Back Up UPS

Dimensions 191x440x350

Weight 10 Kg.

Product Overview

The Arrow Powertech OL10ELB Online Long Backup UPS is a powerful and high-capacity solution engineered to deliver uninterrupted power and extended runtime for critical applications. With a capacity of 10 KVA and an output of 9000 W, the OL10ELB is ideally suited for demanding environments such as the computer industry, healthcare facilities, industrial equipment setups, and pharmaceutical operations where continuous and reliable power is essential.

Built with advanced online double conversion technology, the OL10ELB provides pure sine wave output, ensuring complete protection against power disturbances such as voltage fluctuations, surges, spikes, and frequency inconsistencies. This guarantees safe and stable operation for sensitive equipment including medical devices, high-performance servers, and industrial machinery. With zero transfer time, the UPS ensures seamless power delivery during outages, eliminating downtime and preventing data loss or operational disruptions.

The Arrow Powertech OL10ELB operates on a high-voltage DC system ranging from 192V to 240V, designed to support extended external battery configurations for long backup requirements. This makes it an ideal choice for applications that require prolonged runtime during extended power failures. The UPS is engineered to handle heavy loads efficiently while maintaining consistent performance and reliability.

Designed with durability and advanced safety features, the OL10ELB includes protection mechanisms such as overload protection, short circuit protection, surge protection, and deep discharge protection. Its intelligent battery management system enhances battery efficiency, extends battery life, and reduces maintenance efforts.

Whether deployed in commercial facilities, healthcare institutions, or industrial environments, the Arrow Powertech OL10ELB Online UPS delivers clean, stable, and continuous power. It is a cost-effective and dependable solution for ensuring operational continuity, protecting critical systems, and providing peace of mind during prolonged power interruptions.

Key Features

High frequency on-line double conversion technology
DSP (Digital signal processing) control technology
Active power factor correction (APFC), input power factor up to 0.99
Output power factor 1.0
Wide input voltage range (110V ~ 300Vac)
Auto sensing frequency
50 / 60 Hz frequency conversion
Digitally controlled charger, charging voltage and current configured by demands
High charging current available (Max. 12 A)
Cold start
Rear ventilation design and variable speed fan
Effective software and hardware protection
Quick and stable charging, 90% capacity restored in 3h (standard model UPS)
Linear derating in low voltage input reducing battery discharging times
Advanced battery management (ABM)
Multiple functions settable via LCD: output voltage, EOD, auto-start, bypass mode, ECO mode
Multi-platform communications: RS232 (standard), USB / RS485 / SNMP / dry contacts (optional)
Optional USB, RS485 card, AS400 dry contacts, SNMP card, SMS alarms, EPO function

Download Brochure

Technical Specifications

CAPACITY
Capacity	10 kVA / 10 kW
INPUT
Input Wiring	Single-phase three-wire (1Φ + N + PE)
Rated Voltage	208 / 220 / 230 / 240 Vac
Voltage Range	176~288 Vac (full load); 90~176 Vac (linear derating to 30%)
Rated Frequency	50 / 60 Hz
Frequency Range	40~70 Hz
Input Power Factor	≥ 0.99
Bypass Voltage Range	−40% ~ +15% (settable)
Input Current THDi	≤ 5%
OUTPUT
Output Wiring	Single-phase three-wire (1Φ + N + PE)
Rated Voltage	208 (PF=0.9) / 220 / 230 / 240 Vac
Voltage Regulation	± 1%
Frequency	Synchronized with utility (mains mode); 50 / 60 Hz ± 0.1% (battery mode)
Waveform	Sinusoidal
Output Power Factor	1
Output Voltage THDv	< 1% (full linear load); < 4% (full non-linear load, IEC/EN62040-3)
Crest Factor	3 : 1
Overload	105–110%: 10 min · 110–125%: 1 min · 126–150%: 30 s
BATTERIES
DC Voltage	Default 192 Vdc (120~264 Vdc settable)
Number of Batteries	Default 16 pcs; settable 10–22 pcs (10–15 pcs: linear derating to 50%)
Inbuilt Battery (Std.)	12V / 9 Ah × 16
Charger Power	Std: 1 A default, 1–5 A settable; Long-time: 5 A default, 1–5 A; 12 A optional
Recharge Time	Standard: 90% restored in 8 hours; Long-time: depends on battery capacity
SYSTEM
Efficiency	≥ 94% at full load · 95% max at 60% load · ≥ 98% ECO mode
Transfer Time	0 ms
Protections	Short-circuit · Overload · Over-temperature · Battery low / over / under-voltage · Fan failure
Max. Parallel Units	4
Communications	Standard: RS232, EPO, Smart card slot; Optional: SNMP, Wi-Fi, 4G/SMS, dry contacts, parallel kit, RS485
Display	LCD + LED
ENVIRONMENT
Operating Temperature	0°C ~ 40°C
Storage Temperature	−40°C ~ 70°C (without battery)
Relative Humidity	0~95% (non-condensing)
Altitude	< 1000 m; derate 1% per 100 m (1000–2000 m)
IP Rating	IP 20
Noise Level at 1 m	< 58 dB
OTHERS
Dimensions W×D×H	191 × 440 × 350 (H) mm
Packaged W×D×H	318 × 570 × 475 (H) mm
Net Weight	15.5 kg
Gross Weight	17 kg
