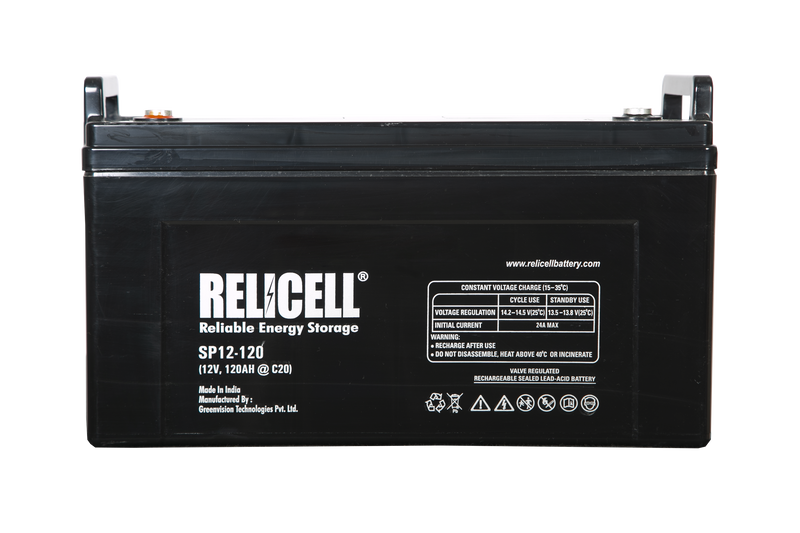

Relicell 120 Ah 12 Volt SMF - VRLA Battery
Quick Specifications
Product Overview
The Relicell 12 Volt 120 Ah SMF - VRLA Battery is a large-format, industrial-grade sealed battery designed to deliver substantial energy reserves for mission-critical power backup applications. Built with thick positive plates and high-purity lead alloy, this battery is optimised for long standby life and superior deep cycle performance, making it one of the most reliable choices for high-demand energy storage in both commercial and industrial settings.
Typically deployed in online UPS systems, solar power plants, telecom backup infrastructure, electric forklifts, railway signalling systems, and large-scale emergency lighting networks, this battery is engineered to perform reliably under continuous load for extended periods. The fully sealed maintenance-free design eliminates the need for acid refilling or equalisation charging, significantly reducing the total cost of ownership over the battery's service life.
The Relicell 120Ah battery features a robust terminal design capable of safely handling high-current draw, ensuring low-resistance connections for demanding industrial loads. Its enhanced cycle life makes it well suited for solar energy storage systems and other daily charge-discharge applications. Spill-proof and gas-free operation makes it safe for installation in enclosed indoor environments including server rooms, battery rooms, and UPS cabinets. The flame retardant ABS housing ensures full compliance with fire safety standards, making it a dependable and cost-effective large-scale backup power solution.
Technical Specifications
| General | |
| Battery Type | SMF – VRLA |
| Voltage | 12 V |
| Rated Capacity | 120 Ah |
| Capacity at 27°C | |
| 20 Hr (10.5 V) | 120.00 Ah |
| 10 Hr (10.5 V) | 111.60 Ah |
| 5 Hr (10.5 V) | 102.00 Ah |
| 3 Hr (10.5 V) | 90.00 Ah |
| 1 Hr (10.5 V) | 72.00 Ah |
| HRD 0.5 Hr (9.6 V) | 120 A |
| Electrical | |
| Normal Charging Current | 12 A |
| Short Circuit Current | 2200 A |
| Internal Resistance | 4 mΩ |
| Physical | |
| Dimensions L×W×H | 405 × 173 × 236 mm |
| Total Height | 236 mm |
| Battery Weight | 33.50 kg ±3% |
| Shipping Weight | 34.15 kg ±3% |
| Terminal Type | T8 |
Support, Warranty & Service
12-Months RTB Warranty
We offer a RTB warranty covering parts and labor
AMC Available
Annual maintenance contracts for hassle-free operation
Installation Service
Professional installation across India
Pan-India Support
24/7 technical assistance hotline
