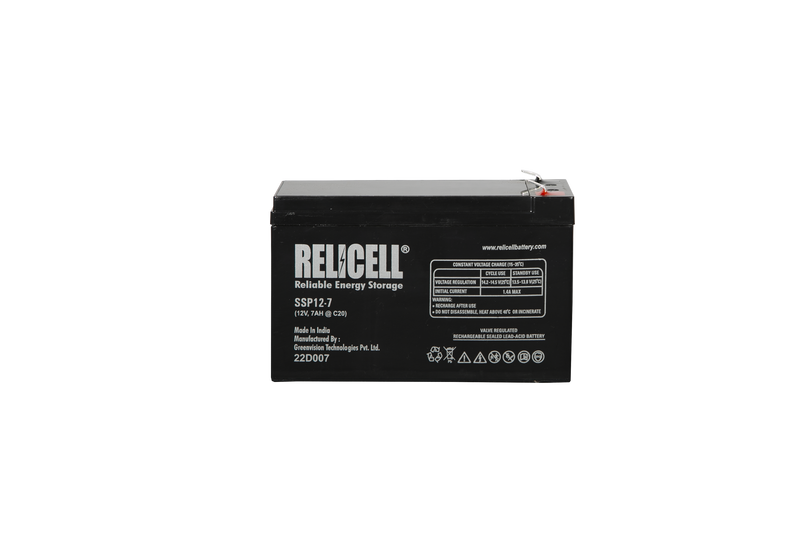

Relicell 7 Ah 12 Volt SMF - VRLA Battery
Quick Specifications
Product Overview
The Relicell 12 Volt 7 Ah SMF - VRLA Battery is a compact, sealed, maintenance-free rechargeable battery engineered for reliable standby and cyclic power applications. Built on advanced Valve Regulated Lead Acid (VRLA) technology with an Absorbed Glass Mat (AGM) design, this battery ensures zero electrolyte spillage and safe operation in any mounting orientation — vertical, horizontal, or inverted.
Designed for everyday reliability, it is ideal for home security alarm systems, emergency lighting units, small UPS systems, access control panels, fire alarm panels, and portable medical devices. The battery's sealed construction eliminates the need for periodic water topping or electrolyte checks, making it a truly set-and-forget power solution for both residential and light commercial use.
With a low self-discharge rate, the Relicell 7Ah battery retains its charge effectively during extended storage periods, ensuring it is ready to deliver power when needed. Its deep cycle and standby dual capability makes it equally well-suited for both float charging and cyclic applications. The flame retardant ABS cabinet, compliant with UL94-V0 standards, provides added safety in enclosed installations. Reliable, compact, and built to last, this battery is the ideal entry-level SMF - VRLA solution for light-duty backup power needs.
Technical Specifications
| General | |
| Battery Type | SMF – VRLA |
| Voltage | 12 V |
| Rated Capacity | 7 Ah |
| Capacity at 27°C | |
| 20 Hr (10.5 V) | 7.00 Ah |
| 10 Hr (10.5 V) | 6.51 Ah |
| 5 Hr (10.5 V) | 5.95 Ah |
| 3 Hr (10.5 V) | 5.25 Ah |
| 1 Hr (10.5 V) | 4.20 Ah |
| HRD 0.5 Hr (9.6 V) | 7 A |
| Electrical | |
| Normal Charging Current | 0.7 A |
| Short Circuit Current | 196 A |
| Internal Resistance | 30 mΩ |
| Physical | |
| Dimensions L×W×H | 152 × 65 × 95 mm |
| Total Height | 100 mm |
| Battery Weight | 2.00 kg ±3% |
| Shipping Weight | 2.05 kg ±3% |
| Terminal Type | F2 |
