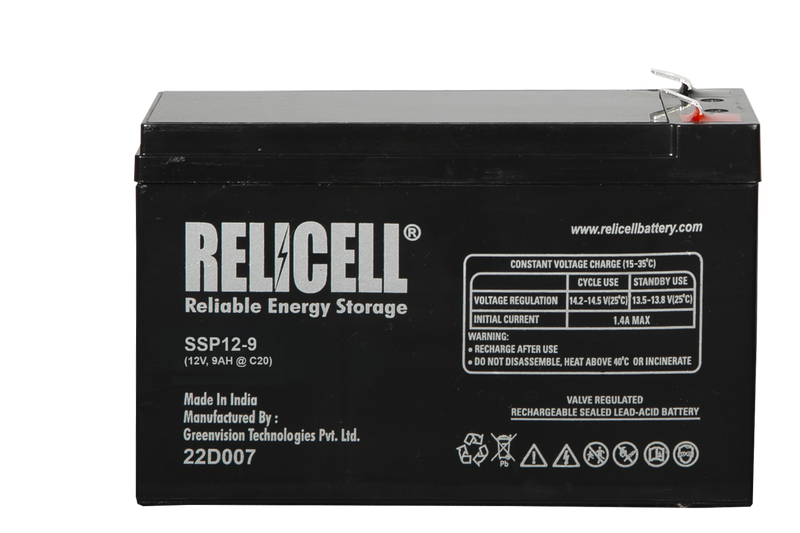

Relicell 9 Ah 12 Volt SMF - VRLA Battery
Quick Specifications
Product Overview
The Relicell 12 Volt 9 Ah SMF - VRLA Battery is a sealed, maintenance-free battery built on advanced VRLA-AGM technology, offering a step-up capacity over the 7Ah model. It is an excellent fit for applications that demand slightly longer backup durations without a significant increase in physical size or weight, making it a versatile choice for both residential and commercial installations.
Commonly deployed in burglar alarm systems, fire alarm panels, emergency exit lighting, small UPS units, CCTV power supplies, and garden lighting controllers, this battery delivers consistent and dependable performance across a wide operating temperature range. Its completely sealed construction means there is no need for periodic maintenance, electrolyte refilling, or ventilation — making it safe for use in confined or enclosed spaces.
The Relicell 9Ah battery features low internal resistance, enabling fast recharge capability and excellent recovery from deep discharge cycles. Its spill-proof design allows safe installation in vertical or horizontal positions without the risk of acid leakage. The flame retardant ABS housing ensures compliance with safety standards for indoor use. Whether used in a home security setup or a small commercial UPS, this battery offers the reliability and convenience of a fully sealed, maintenance-free power source.
Technical Specifications
| General | |
| Battery Type | SMF – VRLA |
| Voltage | 12 V |
| Rated Capacity | 9 Ah |
| Capacity at 27°C | |
| 20 Hr (10.5 V) | 9.00 Ah |
| 10 Hr (10.5 V) | 8.37 Ah |
| 5 Hr (10.5 V) | 7.65 Ah |
| 3 Hr (10.5 V) | 6.75 Ah |
| 1 Hr (10.5 V) | 5.40 Ah |
| HRD 0.5 Hr (9.6 V) | 9 A |
| Electrical | |
| Normal Charging Current | 0.9 A |
| Short Circuit Current | 252 A |
| Internal Resistance | 16 mΩ |
| Physical | |
| Dimensions L×W×H | 152 × 65 × 95 mm |
| Total Height | 100 mm |
| Battery Weight | 2.40 kg ±3% |
| Shipping Weight | 2.45 kg ±3% |
| Terminal Type | F2 |
